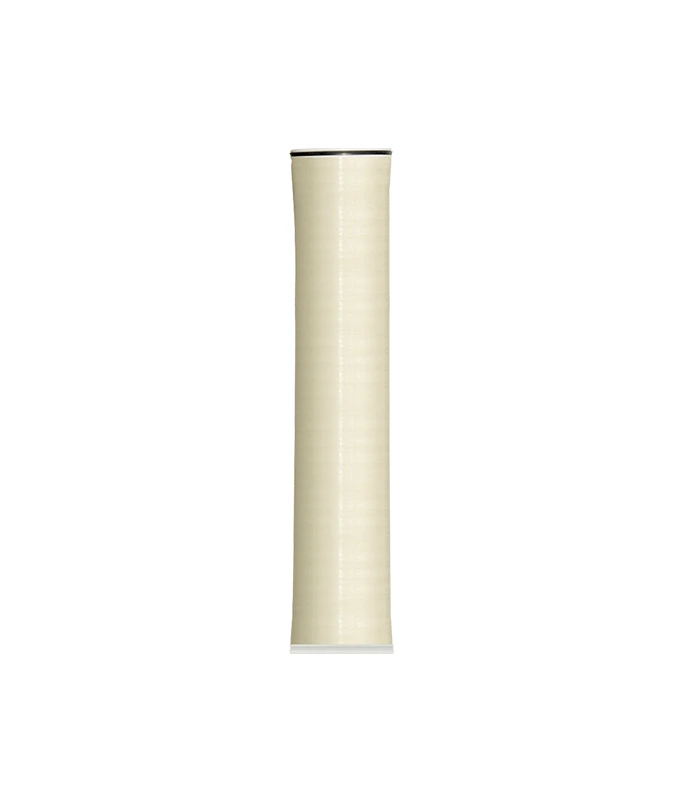

LP/ULP22-8040 Vontron Industrial RO Membrane

R9,200.00

ULP series (ultra-low pressure) aromatic polyamide RO element is developed by VONTRON for treatment of surface water and underground water. Its operation pressure is about 2/3 of the low-pressure membrane, and the rejection rate can reach 99.5%. Thus it can reduce the investment cost of related pumps, pipelines, containers, and other equipment and the operation cost of the RO system, improve economic benefits.

LP series (low pressure) aromatic polyamide RO element is developed by VONTRON for treatment of brackish water. It has the characteristics of low-pressure in operation, high permeate flow, and excellent rejection performance in removing of solvable salts, TOC, SiO

Qty:
Compare
SKU: LP/ULP22-8040 Category:

Description

Vontron Membranes

ULP series of ultra-low pressure aromatic polyamide compound membrane element newly developed by Vontron Membrane Technology Co., Ltd. can work under ultra low pressure to reach as high permeate flow and rejection same as regular low-pressure membrane element, and is applicable to desalination of surface water and underground water. It operates under approximately two thirds of the operating pressure of regular low-pressure composite membranes, which can decrease the investment costs for such relevant facilities as pumps, pipelines, and containers, etc. and the operating cost for the RO system, thus increasing the economic efficiency.

Applicable to desalination treatment of those water sources with NaCl lower than 2000 ppm, such as surface water, underground water, tap water and municipal water, ULP series membrane elements are mainly applicable to such as pure water, boiler water replenishment, foodstuff processing, and pharmaceutical production.

The LP (low pressure) series of aromatic polyamide compound membrane element developed by Vontron Membrane Technology Co., Ltd. has the properties of low-pressure operation, high permeate flow and excellent desalination and is applicable to desalination of brackish water. Besides, it is particularly applicable to fabrication of high-purity water for electronic industry and electric power industry owing to its excellent performance in removing soluble salts, TOC, SiO2, etc.

Being suitable for desalting such water sources as surface water (NaCl ≤10000ppm), underground water, tap water and municipal water, etc., LP series is mainly applicable to treatment of various industrial water such as industrial-purpose pure water, boiler water replenishment in power plants, and can be also applied to such brackish water applications, such as treatment of high-concentration saline waste water and production of beverage-purpose water.

Applications

Domestic Water Treatment

Commercial Water Treatment

Industrial Water Treatment

Performance parameters of the membrane element

ModelActive Membrane
Area
ft2(m2)
Average Permeate
GPD(m3
/d)
Stable Rejection
Rate %
Min. Rejection
Rate %
LP22-8040400(37.2)10500(39.7)99.599.3
Testing
Conditions
Testing Pressure
Testing Solution Temperature
Concentration of Testing Solution (NaCl)
pH value of Testing Solution
Recovery Rate of Single Element
225 psi (1.55Mpa)
25˚C
2000ppm
7.5
15%
Operation Limits &
Conditions
Max. Working Pressure
Max. Temperature of Feed water
Max. Volume of Feed water
Max. Feed water SDI15
pH Range of Feed water during Continuous Operation
pH Range of Feed Water during Chemical Cleaning
Residual Chlorine Concentration of Feed Water
Max. Pressure Drop of Single Membrane Element
Max. Pressure Drop of Single Pressure Vessel with Six RO Membranes
600psi(4.14Mpa)
45˚C
75gpm (173/h)
5
2~11
1~13
<0.1ppm
15psi (0.1Mpa)
50psi (034Mpa)
ModelActive Membrane
Area
ft2(m2)
Average Permeate
GPD(m3
/d)
Stable Rejection
Rate %
Min. Rejection
Rate %
ULP22-8040400(37.2)12100(45.7)99.0

98.5

Testing
Conditions
Testing Pressure
Testing Solution Temperature
Concentration of Testing Solution (NaCl)
pH value of Testing Solution
Recovery Rate of Single Element
150 psi (1.55Mpa)
25˚C
1500ppm
7.5
15%
Operation Limits &
Conditions
Max. Working Pressure
Max. Temperature of Feed water
Max. Volume of Feed water
Max. Feed water SDI15
pH Range of Feed water during Continuous Operation
pH Range of Feed Water during Chemical Cleaning
Residual Chlorine Concentration of Feed Water
Max. Pressure Drop of Single Membrane Element
Max. Pressure Drop of Single Pressure Vessel with Six RO Membranes
600psi(4.14Mpa)
45˚C
75gpm (173/h)
5
3~10
2~12
<0.1ppm
15psi (0.1Mpa)
50psi (034Mpa)

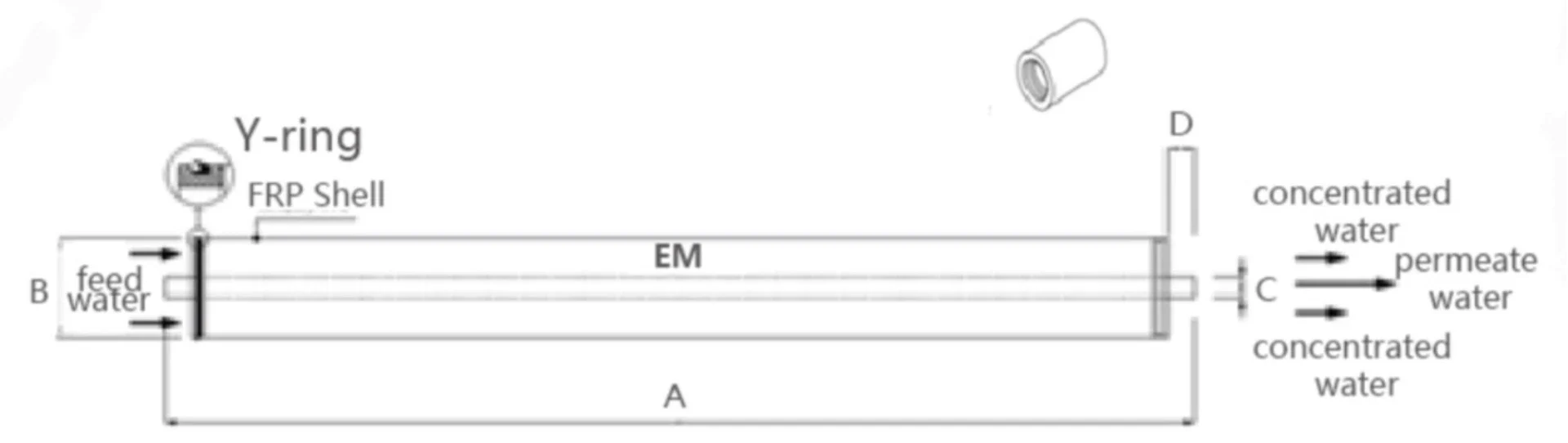

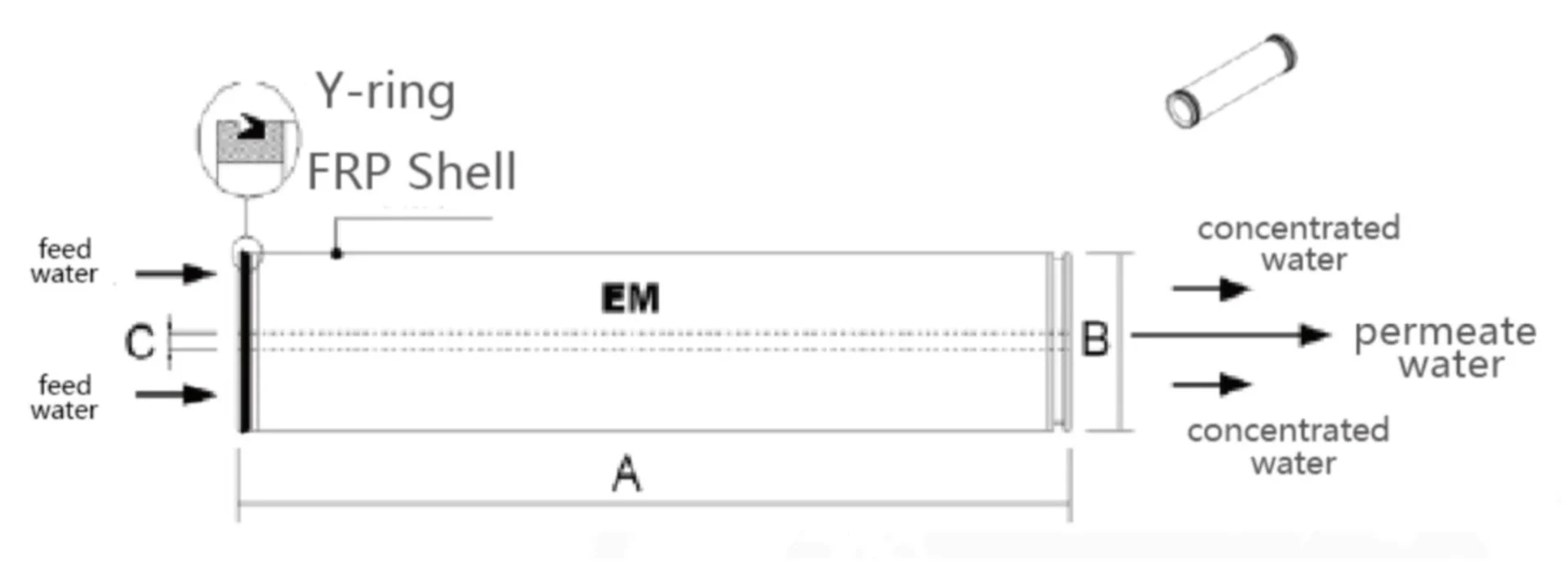

Specification And Size

(A)

(B)

How An RO Membrane Is Made

Below is a video that explains how an RO membrane is made

How An RO Membrane Works

Below is a video that explains how an RO membrane works
