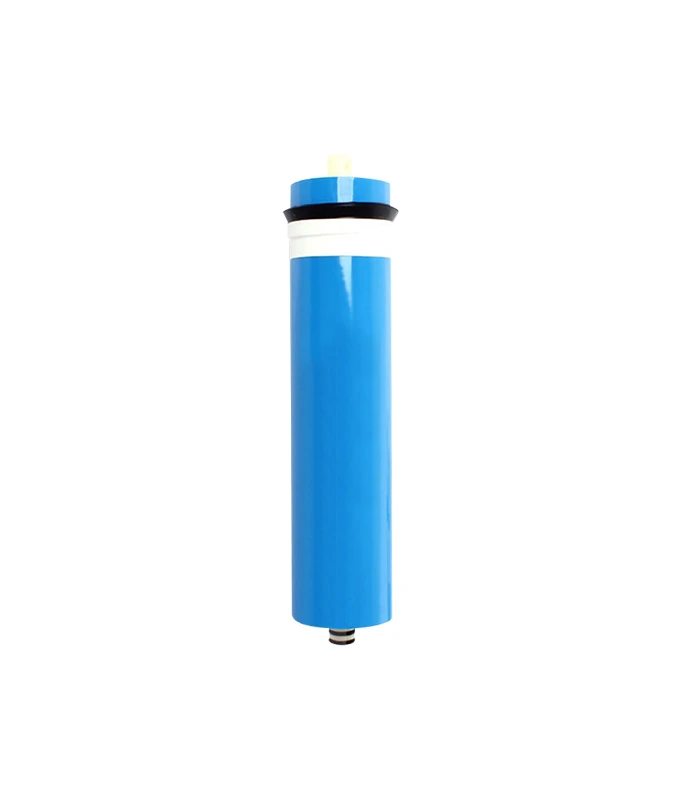

High‑Flow 3013 RO Membrane for Domestic Water Purification
The 3013 RO membrane is a high-performance reverse osmosis element designed for domestic water purification systems. It removes dissolved salts, heavy metals, and other impurities from tap or well water, producing clean and safe drinking water. This membrane fits standard 3013 housings, making installation and replacement straightforward.
How the 3013 RO Membrane Purifies Water
Water is forced under pressure through the 3013 RO membrane. The semi-permeable membrane retains dissolved salts and other contaminants while allowing purified water to pass through. This process significantly reduces total dissolved solids (TDS), improving the taste, clarity, and safety of drinking water.
Technical Specifications
| Specification | Detail |
|---|---|
| Size | 3013 (3″ × 13″ nominal) |
| Rated Flow | 600 GPD |
| Typical Salt Rejection | ~95 % |
| Max Operating Pressure | 300 psi |
| Max Inlet Temperature | 45 °C |
| Recovery (Single Element) | 15 % |
| Testing Pressure | 100 psi (0.41 MPa) |
| Testing Solution Temp | 25 °C |
| Testing Solution Concentration | 500 ppm NaCl |
| Testing Solution pH | 6.5–8.5 |
| Max Turbidity | ≤ 1 NTU |
| Max SDI | ≤ 5 |
| Free Chlorine Tolerance | <0.1 ppm |
| Dimensions | 13″ × 3″ |
Benefits of the 3013 RO Membrane
- Produces up to 600 GPD of purified water for households or offices.
- Reduces dissolved salts, heavy metals, and other contaminants.
- Fits standard 3013 RO housings for easy replacement.
- Provides consistent, reliable purification performance.
- Suitable for tap, well, and low-salinity water sources.
Installation & Maintenance
Turn off the water supply and relieve system pressure before opening the RO housing. Remove the old membrane and insert the new one with the correct orientation. Flush the system according to manufacturer’s instructions. Use sediment and carbon pre-filters to protect the 3013 RO membrane and ensure long-term performance.
