UF Ultrafiltration Systems

UF Ultrafiltration Systems


  • Inlet pressure: below 3bar
  • Backwashing pressure: 2bar
  • Produce capacity: 1000L/H
  • Operating type: full manual, no automatic


  • Product water valves
  • Backwashing inlet water valve
  • Inlet valve
  • Rinse drain water valve
  • Backwashing drain water valve
  • Produce water flow meter
  • Wastewater flow meter

Order Your Ultrafiltration System Today!

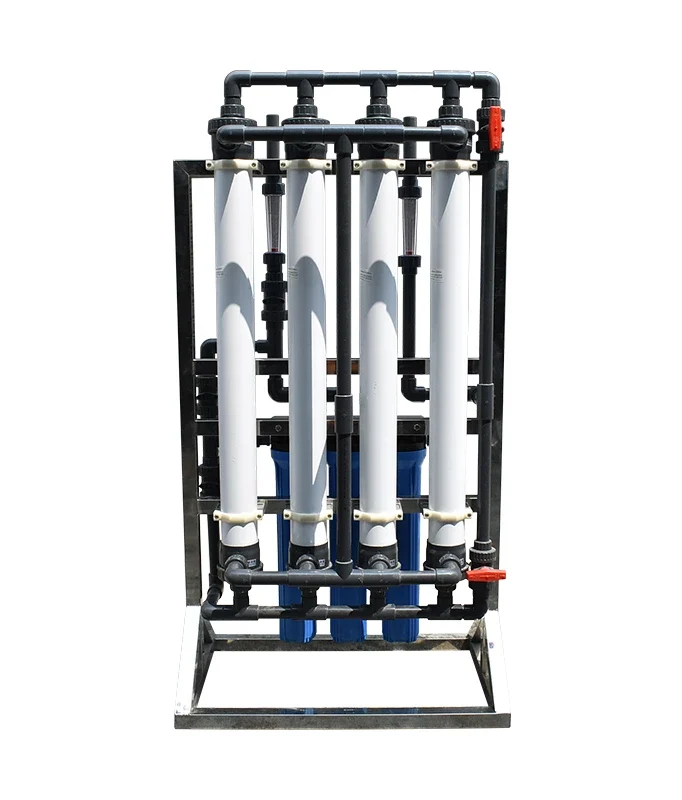

1000LPH UF Manual Control


  • When the system working, open the valve: inlet valve/product water valve;
  • Close others 3 valves,
  • When the system process backwashing, open the valve: backwashing inlet valve, and the backwashing drain valve.
  • Backwashing frequency: 1 week 1 time ;
  • Time of backwashing: 1 time 20-30mins

How To Run The Machine?

UF Membrane AQU-200


Connect the raw water, from the 3 stage blue filter housing, the size is 1";

UF Membrane AQU-250B


Connect product water tank or water use site from the pipe of the produced water flow meter, the size is 1’’;

UF Membrane


Connect the wastewater pipe from the pipe with a wastewater flow meter, for recycle, or drain out;

What does the Ultrafiltration System remove?

It removes suspended (floating) particles, chemicals or bad tastes or odors in the water!

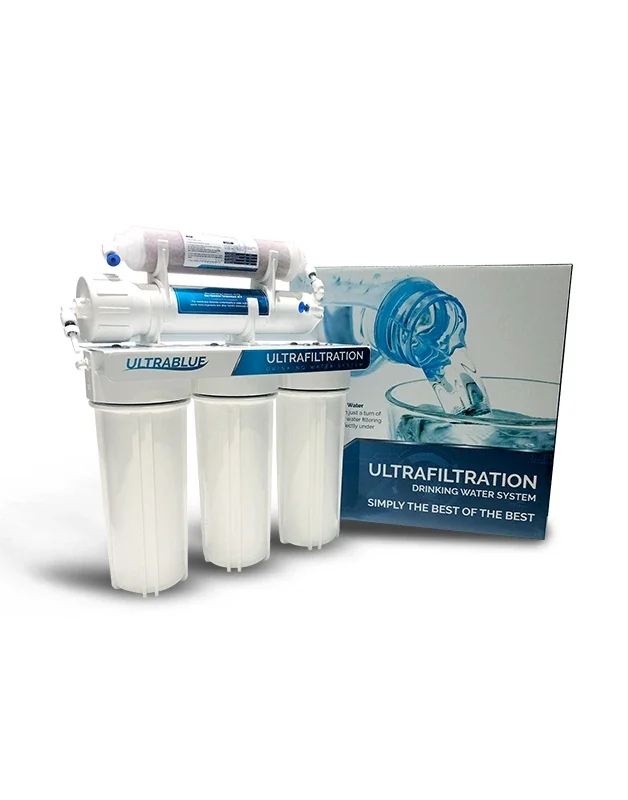

Ultrafiltration Systems


The Puritech 5-stage UF System offers the perfect filtration option for users looking for a basic system that also offers excellent water filtration and has no water waste. The system consists of a sediment, granular carbon, and carbon block filter as pre-treatment and then an Ultra-Filtration membrane which filters down to 0.2 microns to remove bacteria and parasites. The water then flows through an inline carbon polishing filter before flowing to your tap.


  • No Waste Water
  • Operates with low pressure (1 bar and up)
  • Best Value vs Performance Filter- No Power Required- Low maintenance Costs

How Ultrafiltration (UF) Systems Work?

Ultrafiltration (UF) systems have diverse membrane filtrations where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.

Industry and research employ this separation process for purifying and concentrating macromolecular (103 – 106 Da) solutions, which are usually protein solutions. Ultrafiltration is similar to microfiltration, nanofiltration or gas separation, except it differs in the molecule sizes it blocks.

To meet critical discharge criteria, ultrafiltration systems remove the need for clarifiers and multimedia water filtration . Effective ultrafiltration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.

Ultrafiltration (UF) Systems Advantages

Ultrafiltration (UF) membranes systems are more reliable than a conventional multi-media filter, which removed approximately 10 micron or larger of matter, where an ultrafiltration membrane pore size ranges from 0.01 to 0.10 micron.  In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.

  • Superior filtration performance with high flux
  • Very small nominal pore diameter (0.03 µm)
  • Efficiently removes bacteria and viruses
  • Occasionally back washed and air scoured to boost performance and removing the fouling layer to extend operating life
  • Low fouling membrane modules
  • UF Outside-In or Inside-Out Configuration permits reduced plugging and higher solids loading
  • Basic, vertical, modular design permits low cost, compact systems
  • Effective membrane cleaning has a high chemical resistance and temperature tolerance

What is ultrafiltration in water treatment?

Ultrafiltration systems utilize hollow membrane fibers to eliminate suspended solids, bacteria, viruses, and pathogens from the feed water. Pumps send the treated water through microscopic pores, which act as a physical barrier that only allows filtrates to pass through them. Ultrafiltration strainers are used next to remove solids such as weeds and plastics from the filtered water before it enters the UF system. Ultrafiltration plants have been extremely useful in water and wastewater treatment by continuously providing excellent results. After UF treatment, the water can be sent to a for further purification or can be used supplied for immediate public usage.

What is Ultrafiltration (UF) Plant and its importance?

Most regions around the world utilize ultrafiltration plants to maintain sufficient preservation of clean water for public consumption. The water filtration efficiency achieved by UF systems are around 250 times greater than conventional . These plants are also very suitable to many industries that require ultra pure water pushed out from these factories. The ultrafiltration membranes used in these plants are enforced to lower turbidity, or utilize as pretreatment to maintain the effectiveness of your . These plants are generally considered to be of low cost, easy to operate, carry no contaminate residue, and have considerably high recovery ratio.
