When you consider purchasing this system, you need to know the following information as it is very important.
This system requires a pretreatment setup for it to perform like it was designed to.
Below, the sketch shows a basic pretreatment setup with the reverse osmosis system.
The above pretreatment setup is not guaranteed to work unless recommended by a sales agent according to the water analysis report from a lab.
A water analysis report is very important as it determines the pretreatment setup needed to be installed before the reverse osmosis system. As you can see on the sketch above, the pretreatment consists of a Sand/Glass Filter, Carbon Filter, and Antiscalant Dosing system.
Pretreatment setups can consist of even more items installed before the reverse osmosis system. Below is a list of items that could be required as per the water analysis report.
- Chlorine Dosing System
- Ultrafiltration System
- Dmi-65 Iron Removal Media Filter System
- Ozone Generator
- Flocculant System
Once all the equipment has been purchased, you will need a qualified technician to put together the complete setup. We have our own qualified technicians train by the manufacturers of the equipment to do the installation running of the setup. Should you require us to install the system for you, a quote with the installation fee will be sent to you by the sales agent in charge.
Training can also be offered to the guys you want to be the ones installing your setup instead of our technicians.

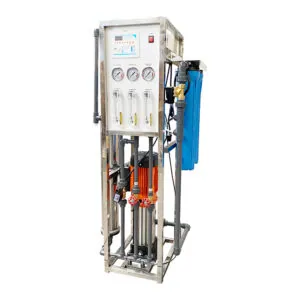

2000 GDP RO System
PURITECH compact Industrial reverse osmosis system is a durable piece of equipment that, with proper care and maintenance will last for many years. The systems are part of a family of reverse osmosis units designed for operation with fresh and brackish feedwaters having TDS values below 1,500ppm. Models are available with permeate outputs of between 150 and 1,000 litres/hr as shown in the specifications.
The rack has been changed from the original 38cm*38cm to 25cm*25cm. Now the dimension of the RO main host can reach 50cmx60cmx130cm, which is 40% smaller than the water treatment system on the market. We also have more compact spacers for parts, components, and smaller racks, which now have less material. Because we redesigned the frame and component construction, saving materials, and lower cost than conventional products. This RO water plant is especially suitable for customers who are sensitive to the product price and freight and also wants to develop new markets with a lower investment of costs.
Although the structure of the product is redesigned, it does not affect the performance of the industrial Reverse Osmosis water plant, and it can maintain the same salt rejection rate, service life, and recovery rate as conventional products. The Reverse Osmosis salt rate of this RO host can reach 99%, so we don’t have to worry about the purity of the water produced. The quality of the RO membrane plays a decisive role in water quality. We choose the internationally renowned brand DOW and VONTRON RO membrane to ensure the stability of water quality and its service life can be up to 2-3 years. RO membrane can effectively remove heavy metals, metal ions, bacterial viruses, etc. and the water can be directly consumed. The recovery rate is a value for adjusting the ratio of purified water to wastewater. The general recovery rate is set in the range of 45%-50%, but in fact, this recovery rate can also be adjusted by ourselves because we have set a regulating valve on the concentrated water pipeline.
The flow rate of this RO water plant is 250lph. After a large number of consumers survey, 250lph is the water mostly used by families or villas. It will not cause the excessive flow to lead to energy consumption and insufficient water consumption due to too little flow. And this RO water plant redesigned the appearance, the manufacturing cost is lower and the selling price is lower. This cheap RO water plant is especially popular in Africa. We have produced hundreds of machines and sold them to a dealer to open up the market. At the same time, we will equip the RO host with some parts, you can get the goods in 7 days at the earliest. If you have any questions, please feel free to ask us.
Besides focusing on quality, a device needs to pay more attention to the dimension of the device and reduce the space for use. The dimension is large in the market and the volume can reach 65.5*55*131CM.
|Feed PH range:||3-10|
|Temp of raw water||1-45℃|
|Feed Water Pressure||1-5 bar|
|Raw water TDS||0-1000ppm|
|RO Membrane||Aromatic polyamide|
|Conductivity meter||engineering plastics|
|Electronic control system||Air switch.electric relay.alternating current contractor.switch.LED|
|Control box||Mild steel /ss202|
|Pipe||“2 inch，HP pipe：ss202 LP pipe：UPVC”|
Precision filter: Add filter cartridge to protect the membrane and extend the membrane service life
|1||Precision filter||PP, CTO||3-6 months|
|2||RO membrane||Vontron/Dow/CSM etc;||2-3 years|
- Capacity (GDP/LPH): 2000/300
Working Pressure (PSI/BAR): 150-200/10-14
Pre-Filtration: (20″ Filter Housing x2) + (20″ PP Cartridge 5u + 1u)
Booster Pump: Vertical Multistage Pump
- Material: T.F.C with FRP outer wrap
- Size + Unit: 4040 x 1
Material: High-Pressure TRP end port type
Size x Unit: 4040 x 1
- Flow Meters: Permeate/Concentrate/Backflow
- Pressure Gauges: Feedwater pressure/Booster pump outlet pressure gauge
- Water Quality Indicator: T.D.S meter with LCD
- Electrical Controls: Micro-computer control, overload breakers, LED indicators
- Frame: Electro-polished stainless steel 304
- Weight: 64KG
FEED WATER PARAMETERS
- Turbidity (SD): <5
- T.D.S.: <2000 ppm Temperature: +5 to 40 oC
- Free Chlorine: 0 ppm
- pH: 3-11
- Iron: <0.01 ppm
